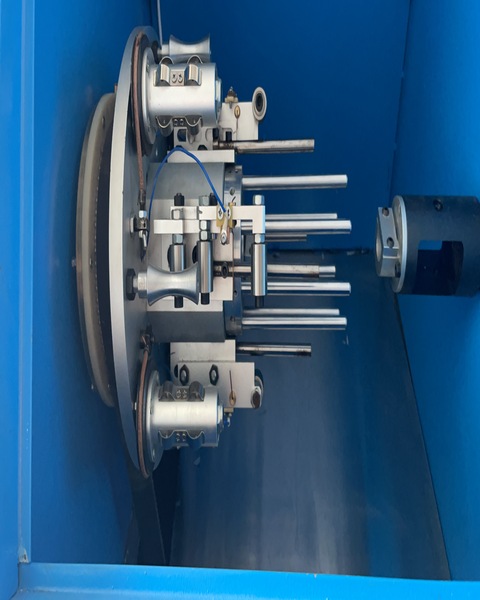

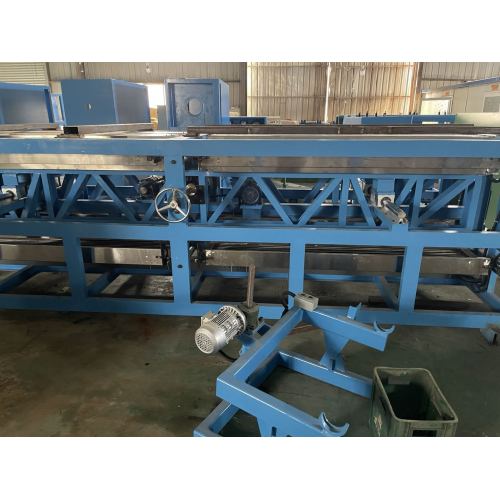

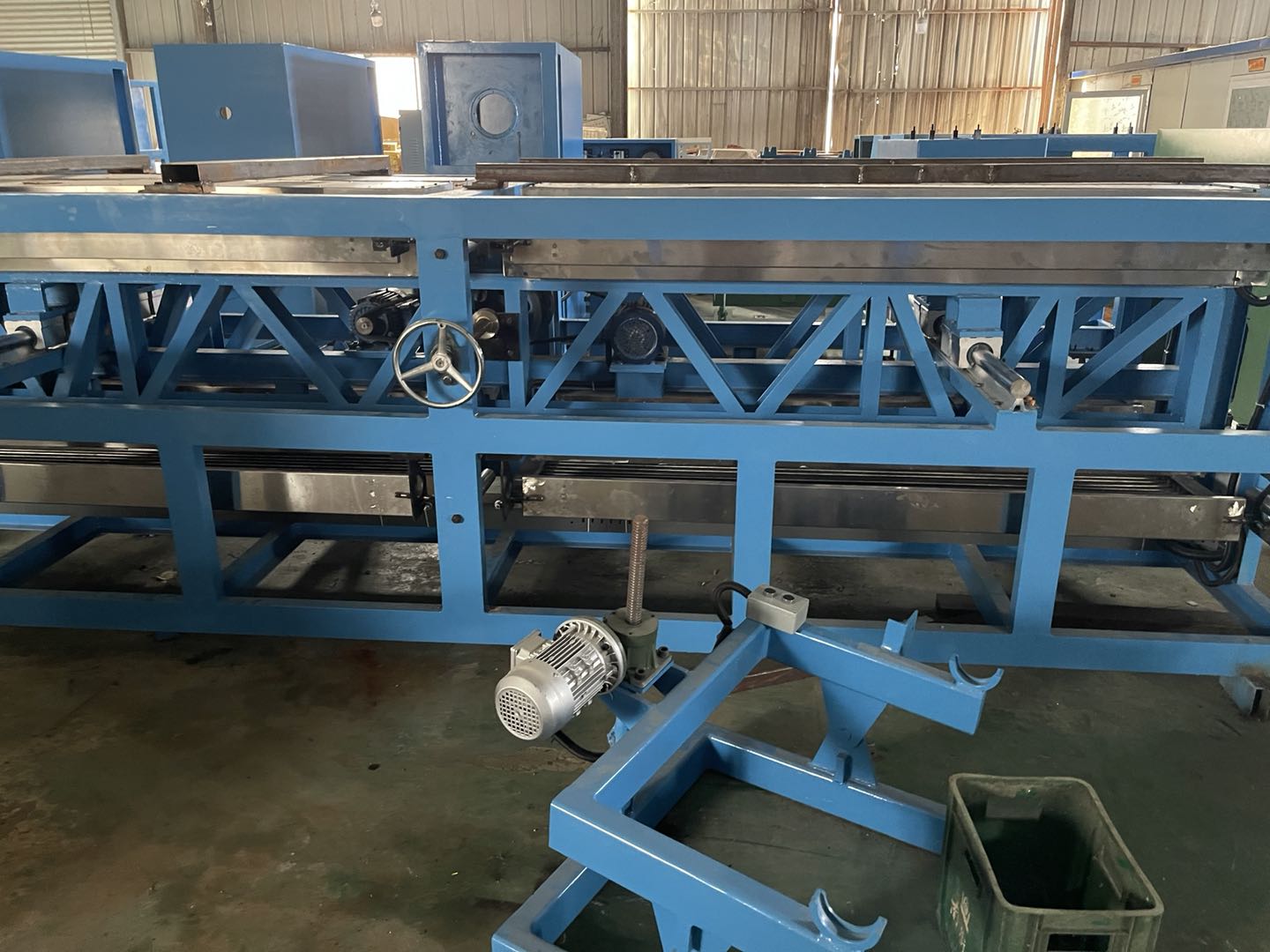

MÁQUINA ROSCADORA CONCENTRICA DE FIBRA DE VIDRIO
1. Descripción general: Una máquina de doble línea para producir alambre recubierto de fibra de vidrio doble y alambre cubierto de fibra de vidrio doble con película.
2. Especificación:
|
Category |
Parameter |
Value / Range |
|
Production Range |
Conductor Width (b) |
3 ~ 18 mm |
|
Conductor Thickness (a) |
1 ~ 4 mm |
|
|
Cross-Sectional Area |
3 ~ 60 mm2 |
|
|
Width/Thickness Ratio |
0.4 ~ 12 |
|
|
Round Wire Diameter |
1.5 ~ 6.5 mm |
|
|
Insulation Materials |
Glass-fiber,Polyester,Film |
|
|
Yarn Roll (Inner Hole) |
Ø45 mm |
|
|
Yarn Roll (Roll Length) |
75 mm |
|
|
Yarn Roll (Tube Length) |
95 mm |
|
|
Film Taping Head Pitch |
4 ~ 30 |
|
|
Fiberglass Taping Head Pitch |
3 ~ 12 |
|
|
Equipment Specs |
Host Width |
1,210 mm |
|
Host Length |
6,200 mm |
|
|
Overall Length |
~23,000 mm |
|
|
Power Supply |
AC 380V / 50Hz (User-Provided) |
|
|
Total Power |
55 kW |
|
|
Installation Prep* |
Specify wire/pipe laying (ground or aerial bridge) |
