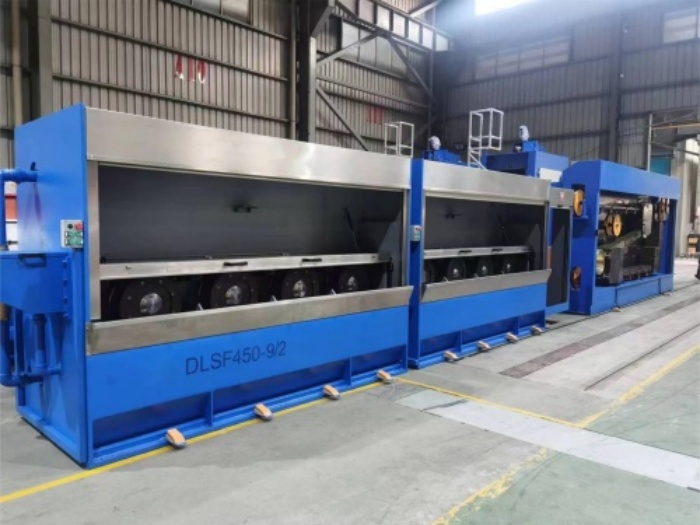

Máquina de trefilado fino de alambres múltiples con recocido ( 16 alambres)
I. Componentes principales de la máquina:
1. Pago por 16 alambres 1 colocar

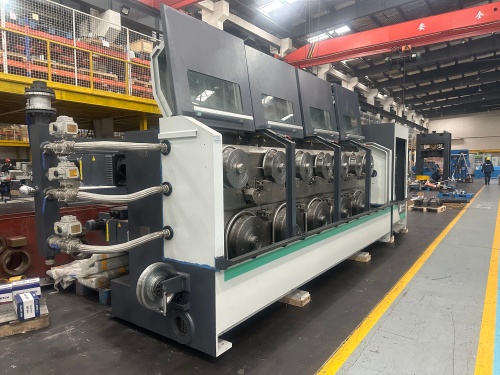

2. Máquina trefiladora múltiple 1 colocar
3. Recocido en línea 1 juego
4. tomar maquina 2 juegos
5. generador de vapor 1 colocar
6. Sistema de refrigeración del eje de recocido 1 colocar
7. Gabinete de control eléctrico 1 colocar
8. Sistema de enfriamiento y filtración de emulsión. 1 colocar
9. Sistema de enfriamiento y filtración por recocido. 1 colocar
II. Especificación técnica
|
Multiwire Drawing Lines |
Annealer |
|||
|
Machine Type |
MD100.02 22.16B |
Machine Type |
MA140.02.2000B |
MA160.02.3000B |
|
Material |
Bare copper wire |
Material |
Bare copper wire |
|
|
Tinned copper wire |
Tinned copper wire |
|||
|
Machine speed |
Max.1800 m/min |
Machine speed |
Max.1800 m/min |
|
|
No. of wires |
16 |
No. of wires |
16 |
|
|
Inlet dia. |
1.60 - 2.00mm |
Wires range |
0.15 - 0.40 mm |
|
|
Finished dia. |
0.15 - 0.40 mm |
Contact pulley dia. |
140 mm |
160 mm |
|
No. of dies |
22 |
Annealing voltage |
60 V DC |
|
|
Drawing capstan dia. |
100 mm |
Annealing current |
Max.2000 A |
Max.3000 A |
|
Dies change system |
Fast die change design |
Control method |
IGBT DC power supply |
|
|
Control method |
AC Servo Control |
Bearing lubrication mode |
Automatic grease lubrication system |
|
|
Drive method |
2-motors drive method |
|||
