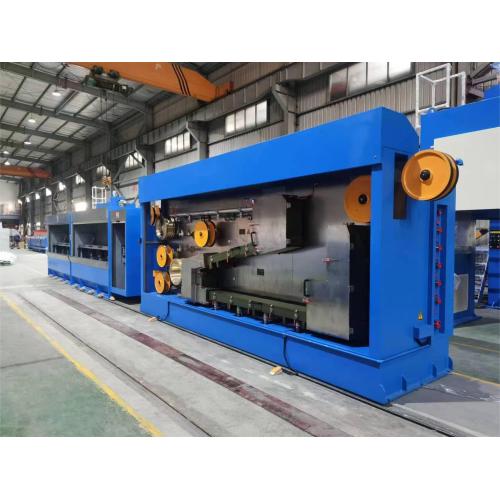

Máquina de trefilado fino de alambres múltiples con recocido ( 8 alambres)
I. Componentes principales de la máquina:
1. Devanado para 8 hilos 1 colocar
2. Máquina trefiladora múltiple 1 colocar
3. recocido en línea 1 juego
4. tomar maquina 2 juegos
5. generador de vapor 1 colocar
6. Sistema de refrigeración del eje del recocido 1 colocar
7. Gabinete de control eléctrico 1 colocar
8. Sistema de enfriamiento y filtración de emulsión. 1 colocar
9. Sistema de enfriamiento y filtración por recocido. 1 colocar
II. Especificación técnica
|
Multiwire drawing machine |
Annealer |
|||
|
Machine Type |
MD120.01.19.08C |
Machine Type |
MD200.01.3000C |
MD200.01.5000C |
|
Material |
Bare copper wire |
Material |
Bare copper wire |
|
|
Tinned copper wire |
||||
|
Machine speed |
Max.1800 m/min |
Machine speed |
Max.1800 m/min |
|
|
No. of wires |
8 |
No. of wires |
8 |
|
|
Inlet dia. |
2.600 mm |
Wires range |
0.250-0.680 mm |
0.370-1.050 mm |
|
Finished dia. |
0.250-1.050 mm |
Contact pully dia. |
200 mm |
|
|
No. of dies |
17/19/22 |
Annealing voltage |
60 V DC |
|
|
Drawing capstan dia. |
120 mm |
Annealing current |
Max.3000 A |
Max.5000 A |
|
Dies change system |
Fast die change design |
Control method |
IGBT DC power supply |
|
|
Control method |
AC Servo Control |
Bearing lubrication mode |
Automatic grease lubrication system |
|
|
Drive method |
2-motors drive method |
|||
