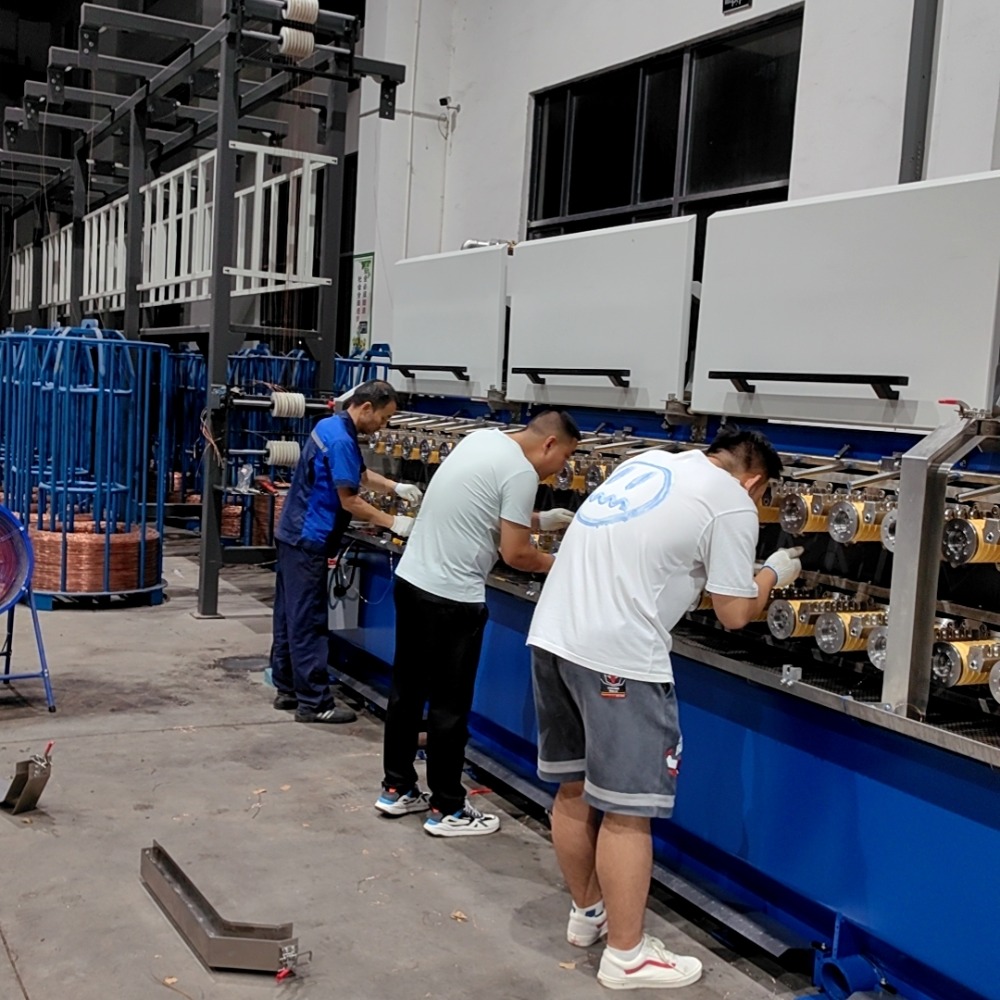

Máquina de trefilado fino de alambres múltiples con recocido ( 24 alambres)
I. Componentes principales de la máquina:
|
1 |
Pay-off for 24 wires |
1set |
|
2 |
Multi-wire drawing machine |
1set |
|
3 |
Online annealer |
1set |
|
4 |
Take up machine |
2 sets |
|
5 |
Steam generator |
1set |
|
6 |
Cooling system of annealer shaft |
1set |
|
7 |
Electrical control cabinet |
1set |
|
8 |
Emulsion cooling and filtration system |
1set |
|
9 |
Annealing cooling and filtration system |
1set |
II. Especificación técnica
|
Multiwire drawing machine |
Annealer |
||
|
Machine Type |
MD100.02.25.248 |
Machine Type |
MA200.02.5000B |
|
Material |
Bare copper wire |
Material |
Bare copper wire |
|
Tinned copper wire |
Tinned copper wire |
||
|
Machine speed |
Max.1800 m/min |
Machine speed |
Max.1800 m/min |
|
No. of wires |
24 |
No. of wires |
24 |
|
Inlet dia. |
2.00 mm |
Wires range |
0.150 - 0.400mm |
|
Finished dia. |
0.150 - 0.400mm |
Contact pulley dia. |
200 mm |
|
No. of dies |
25 |
Annealing voltage |
60 V DC |
|
Drawing capstan dia. |
100 mm |
Annealing current |
Max.5000 A |
|
Dies change system |
Fast die change design |
Control method |
IGBT DC power supply |
|
Control method |
AC Servo Control |
Bearing lubrication mode |
Automatic grease lubrication system |
|
Drive method |
3-motors drive method |
||
