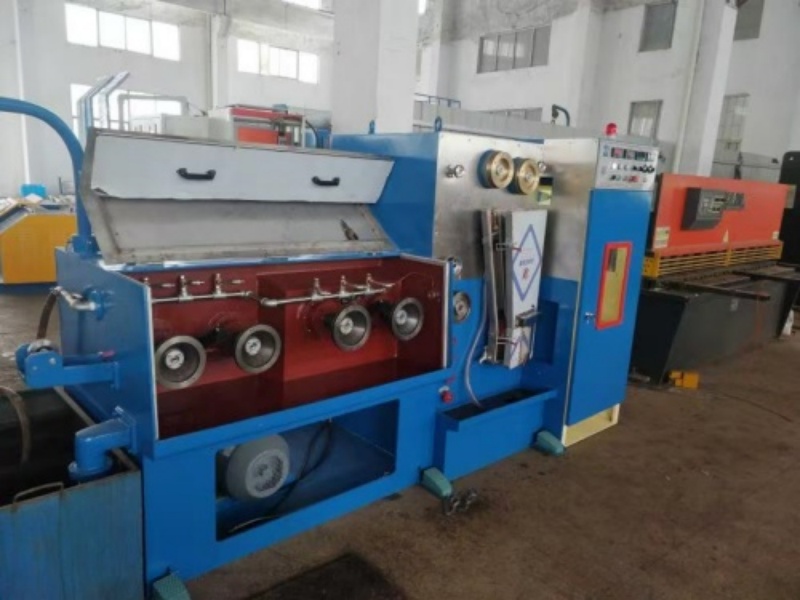

Máquina de trefilado fino de alambres múltiples con recocido ( 8 alambres)
I. Especificación técnica
|
Multiwire drawing machine |
Annealer |
|||
|
Machine Type |
MD120.01.19.08C |
Machine Type |
MD200.01.3000C |
MD200.01.5000C |
|
Material |
Bare copper wire |
Material |
Bare copper wire |
|
|
Tinned copper wire |
||||
|
Machine speed |
Max.1800 m/min |
Machine speed |
Max.1800 m/min |
|
|
No. of wires |
8 |
No. of wires |
8 |
|
|
Inlet dia. |
2.600 mm |
Wires range |
0.250-0.680 mm |
0.370-1.050 mm |
|
Finished dia. |
0.250-1.050 mm |
Contact pully dia. |
200 mm |
|
|
No. of dies |
17/19/22 |
Annealing voltage |
60 V DC |
|
|
Drawing capstan dia. |
120 mm |
Annealing current |
Max.3000 A |
Max.5000 A |
|
Dies change system |
Fast die change design |
Control method |
IGBT DC power supply |
|
|
Control method |
AC Servo Control |
Bearing lubrication mode |
Automatic grease lubrication system |
|
|
Drive method |
2-motors drive method |
|||
Finalmente, la máquina trefiladora a la venta está respaldada por una gama de servicios de soporte, que incluyen asistencia técnica y opciones de garantía. Estos servicios garantizan que los usuarios tengan acceso a la ayuda que necesitan para maximizar los beneficios de la máquina. Con el soporte adecuado, este sistema automático de trefilado de alambre de cobre puede convertirse en la piedra angular de cualquier operación exitosa de producción de alambre.
